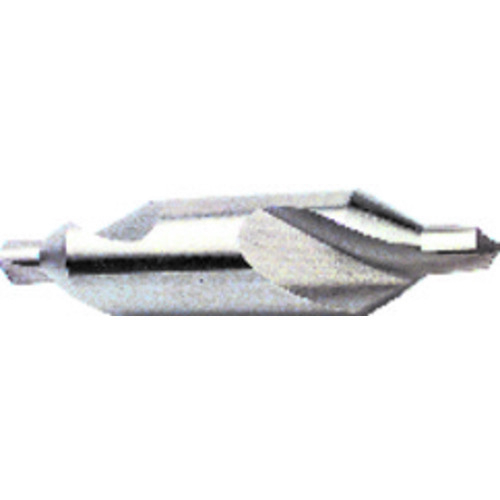

1495 #4 COMB DRL/CTSK
Drill Bit; 1/8″ Dia. × 1/8″ LPR × 2-1/8″ OAL × 5/16″ Shank Dia. ; 60 Degrees ; 2 FL ; HSS ; Uncoated ; Series 1495
| Style | Plain Type | Coating | Uncoated |
| Drill Bit Size / Cutting Diameter (DC) | 1/8″ | Cutting Edge Material | HSS |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/8″ | Nose Length | 1/8″ |
| Decimal Equivalent | 0.3125″ | Size | #4 |
| Point Angle (SIG) | 60 Degrees | Point Diameter (PDD) | 1/8″ |
| Angle | 60 Degrees | Measurement Type | Inch |
| Protruding Length (LPR) | 1/8″ | Length Group | Standard |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 2-1/8″ | Tool Type | Combination Drill & Counter Sink |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Series/List # | 1495 |
Product Features
| Remarks | •Combined Drills and Countersinks •Often called center drills •Designed for drilling center holes in the ends of work pieces to be held between standard 60Deg centers. •Plain Type | Country of Origin | France |
Shipping Info
Additional Fees and Notes
0
Package Length
3.10000
Package Width
.50000
Package Height
.50000
Package Weight
0.04
