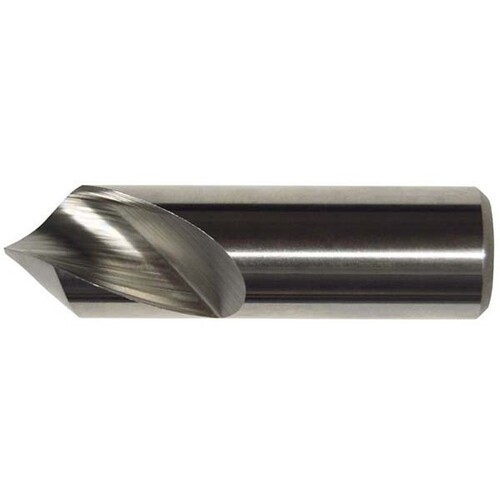

KEO 955 HSS Spotting Drill DIA-1-1/4 × 118DEG Uncoated
Drill Bit; 1-1/4″ Dia. × 4″ OAL × 1-1/4″ Shank Dia. ; 118 Degrees ; Round Shank ; HSS ; Bright
Additional Canadian Tariff of 25 %
| Drill Bit Size / Cutting Diameter (DC) | 1-1/4″ | Cutting Edge Material | HSS |
| Decimal Equivalent | 1.25″ | Flute Length | 2″ |
| Point Angle (SIG) | 118 Degrees | Size | 1-1/4″ |
| Angle | 118 Degrees | Point Diameter (PDD) | 1-1/4″ |
| Overall Length (OAL) | 4″ | Measurement Type | Fractional |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Tool Type | Spotting Drill |
| Coating | Bright | Cutting Length | 2″ |
Product Features
| Remarks | •Spotting & Centering Drills •High Speed Steel •Prevent misalignment frequently caused by using regular drills for centering. These short drills can be chucked close to the point -ensuring accuracy and true starts. | Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Length
4.00000
Package Width
1.00000
Package Height
1.00000
Package Weight
1.02
