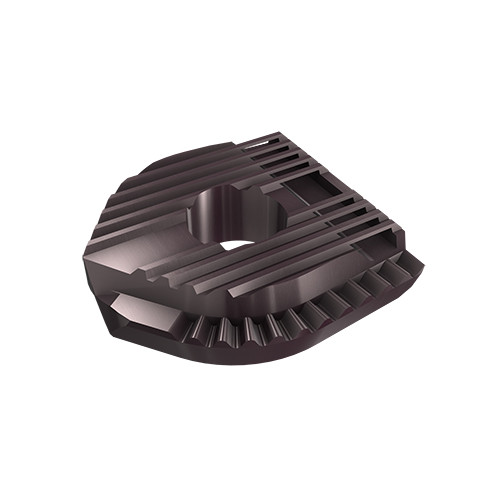

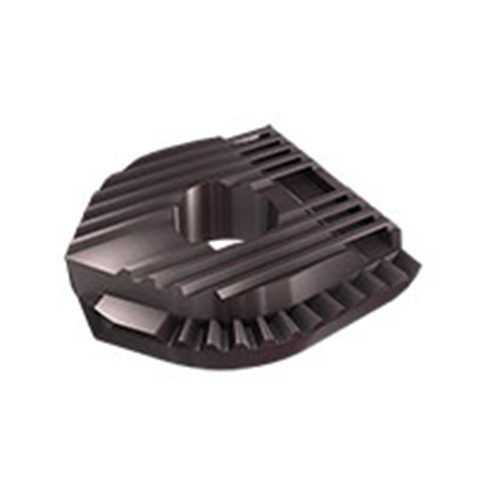

TBXR-1500-N ZS26F
RigidLock Roughing Ball Nose Style Milling Inserts

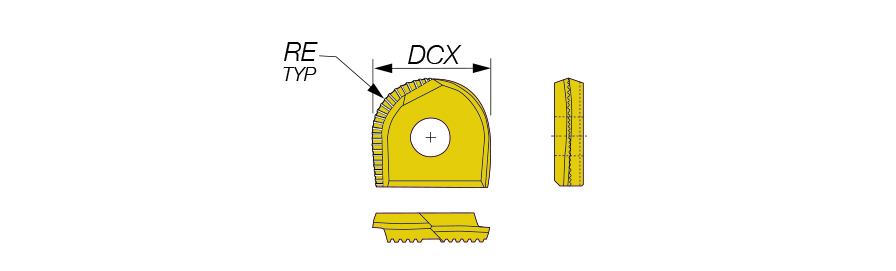

| Application | | Ext Milling Rigid Lock | | Insert Body Diameter (INSBD) | 2 |
| Corner Radius (RE) | 3/4″ | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Depth of Cut Maximum (APMX) | 3/4″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.312″ | Tool Type | Single sided Inserts |
| Coating | TiAlN | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Grade | ZS26F | Measurement Type | Inch |
| Insert Style | TBXR | Body Material | Carbide |
| Insert Size | 1500 | Cutting Diameter (DC) | 1-1/2″ |
Product Features
| Family Description | RigidLock Roughing Ball Nose Style Milling Inserts | Country of Origin | USA |
Shipping Info
Package Weight
0.003
