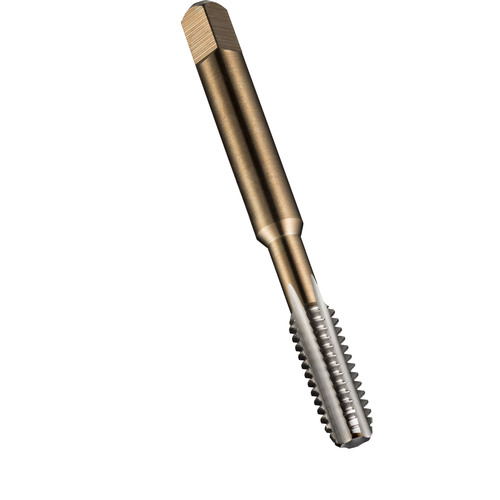

10-32 4F H3 HSS P
E-code # E07110-32NO2
| Thread Diameter Size (TDZ) | #10 | Tool Type | Hand Tap |
| Threads per Inch (TPI) | 32 | Coating | Uncoated |
| Thread Standard | UNF | Tapping Prehole Diameter (Pre-hole) | #21 |
| Overall Length (OAL) | 2-3/8″ | Flute Length | 0.76″ |
| Thread Cutting Part Length (THL) | 0.76″ | Flute Type | Straight |
| Usable Length (LU) | 0.76″ | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | | Length Group | 1.5D |
| Cutting Edge Material | HSS | Measurement Type | Machine Screw |
| Thread Tolerance Class (TCTR) | 2B | 3B | H4 | Series/List # | E071 |
| Standard | ANSI | Thread Size | #10 - 32 |
Product Features
| Family Description | E-code # E07110-32NO2 | Country of Origin | Brazil |
Shipping Info
LocalField10
0
Package Weight
0.022
