JBIR07140050-D050 SH730

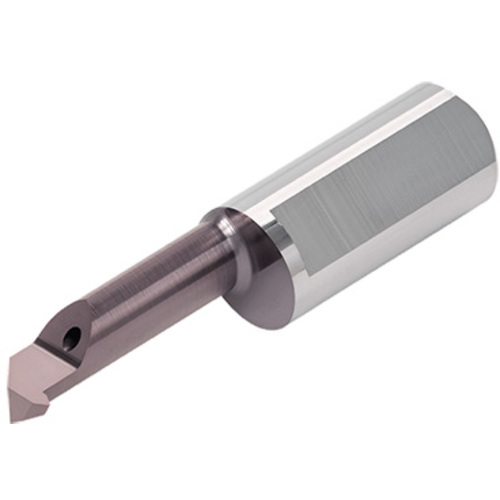

Solid boring bars for threading, Metric thread

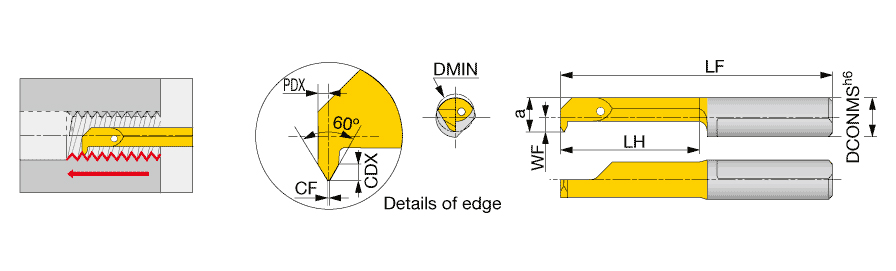

| Thread Pitch (TP) | 0.5 mm | Coating | TiAlN |
| Overhang Minimum (OHN) | 0.3 mm | Measurement Type | Metric |
| Functional Width (WF) | 0.9 mm | Overall Length (OAL) | 30 mm |
| Cutting Edge Material | Carbide | Minimum Bore Diameter (DMIN) | 5 mm |
| Connection Diameter Machine Side (DCONMS) | 7 mm | Grade | SH730 |
| Application | | Internal Threading | | Tool Type | Solid Threading Tools |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Body Material | Carbide |
Product Features
| Family Description | Solid boring bars for threading, Metric thread | Country of Origin | Israel |
Shipping Info
Package Weight
0.029
