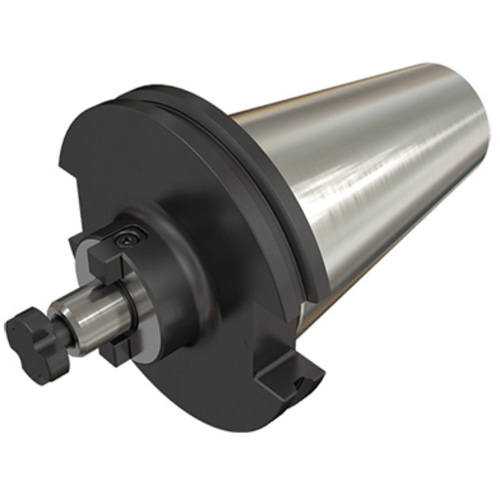

DIN6987150SEM22X50X200
Shell mill holder with DIN69871 shank

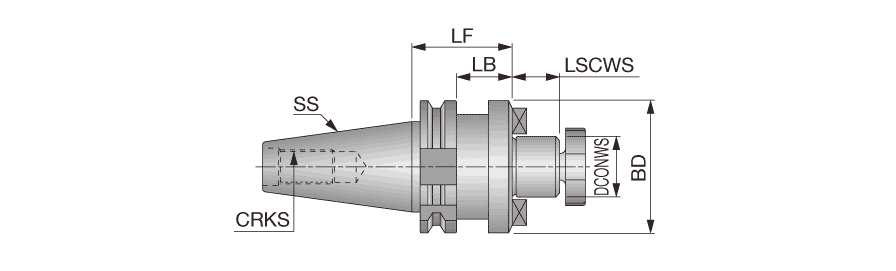

| Connection Diameter Workpiece Side (DCONWS) | 22 mm | Connection Retention Knob Thread Size (CRKS) | M24 |
| Shank Size (SS) | SK50 | Application | | Tapered shape interface | |
| Body Length (LB) | 180.9 mm | Tool Type | DIN 69871 |
| Body Diameter (BD) | 50 mm | Measurement Type | Metric |
| Overall Length (OAL) | 200 mm | Body Material | Steel |
| Thread Size | FDA |
Product Features
| Family Description | Shell mill holder with DIN69871 shank | Country of Origin | ITALY |
Shipping Info
Package Weight
12.081
