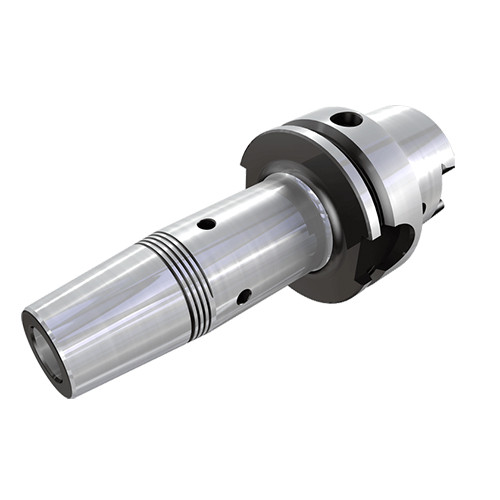

HSKA63SRKIN18X95
Shrink Fit Holder; 1.654″ Hole Dia. ; Round Shank

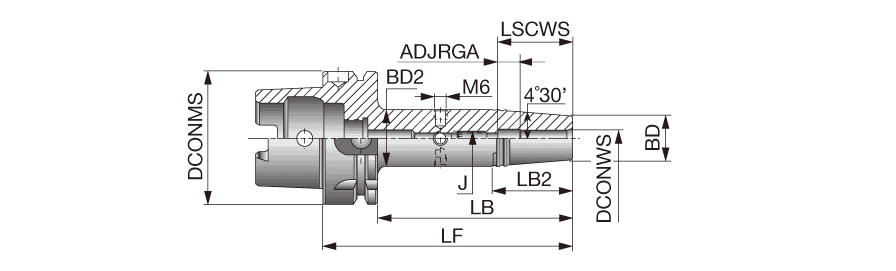

| Connection Diameter Machine Side (DCONMS) | 63 mm | Overall Length (OAL) | 95 mm |
| Connection Diameter Workpiece Side (DCONWS) | 18 mm | Shank Type | Round |
| Shank Size (SS) | 63. | Application | | Face contact interface | |
| Body Length (LB) | 69 mm | Thread Designation Inside (THID) | M12 |
| Body Length_2 (LB_2) | 57 mm | Clamping Length Workpiece Side (LSCWS) | 95 mm |
| Body Diameter (BD) | 33 mm | Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 42 mm | Tool Type | HSK |
| Body Taper End Diameter (BTED) | 127 mm | Body Material | Steel |
Product Features
| Family Description | TungShrink thermal shrinking holder for carbide and HSS with HSK-A shank | Country of Origin | ISRAEL |
| Remarks | Use only inductive heating device for SRKIN holders. |
Shipping Info
Package Weight
2.617
