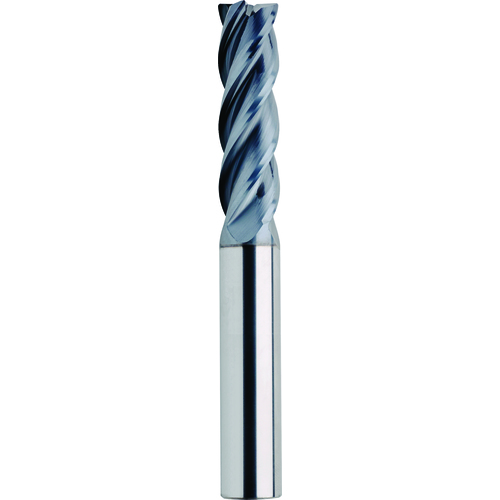

1/4″ × 1/4″ × 3″ 4 Flute Single End Carbide Finishing Center Cutting End Mill-veri4 Series/List #5980
SQ End Mill; 1/4″ Dia. × 1-1/8″ LOC × 1/4″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; AlTiCrN ; Series 5980
| Cutting Diameter (DC) | 1/4″ | Usable Length (LU) | 1-1/8″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 1-1/8″ | Application | Finishing |
| Overall Length (OAL) | 3″ | Tool Type | High Performance End Mill |
| Cutting Edge Material | Carbide | Length Group | Long |
| Coating | AlTiCrN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Style | Finishing |
| Flute Helix Angle (FHA) | Variable | Decimal Equivalent | 0.25″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Square | Series/List # | 5980 |
Product Features
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Length
3.12500
Package Width
.37500
Package Weight
0.077
