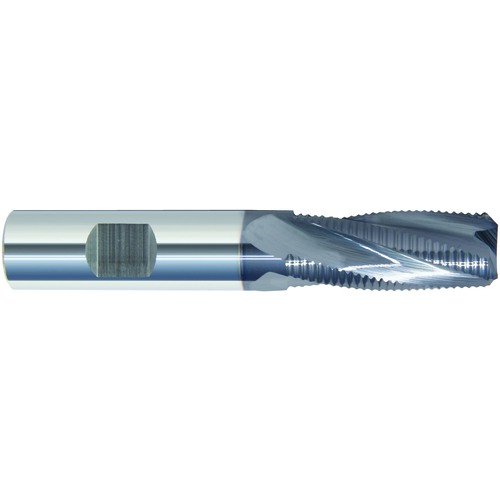

1/4″ × 1/4″ × 3/4″ × 2 1/2″ 0.0200″ C/R 4 Flute Single End Carbide Roughing End Mill-ALTiN Series/List #5971T
SQ End Mill; 1/4″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; AlTiN ; Series 5971T
Additional Canadian Tariff of 25 %
| Cutting Diameter (DC) | 1/4″ | Corner Radius (RE) | 0.02″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Tool Type | Single End |
| Depth of Cut Maximum (APMX) | 3/4″ | Length Group | Regular |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Fine Pitch |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Style | Roughing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.25″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Corner Radius | Series/List # | 5971T |
| Usable Length (LU) | 3/4″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
| Application | Roughing |
Product Features
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.07
